Modular plastic chain conveyors
Modular plastic chain conveyors, built to the width and layout the line needs. Our vacuum conveyors hold lightweight and unstable containers upright, including empty PET bottles and cans.
The 85 mm conveyor system can be configured online for an instant price.
Products in this category

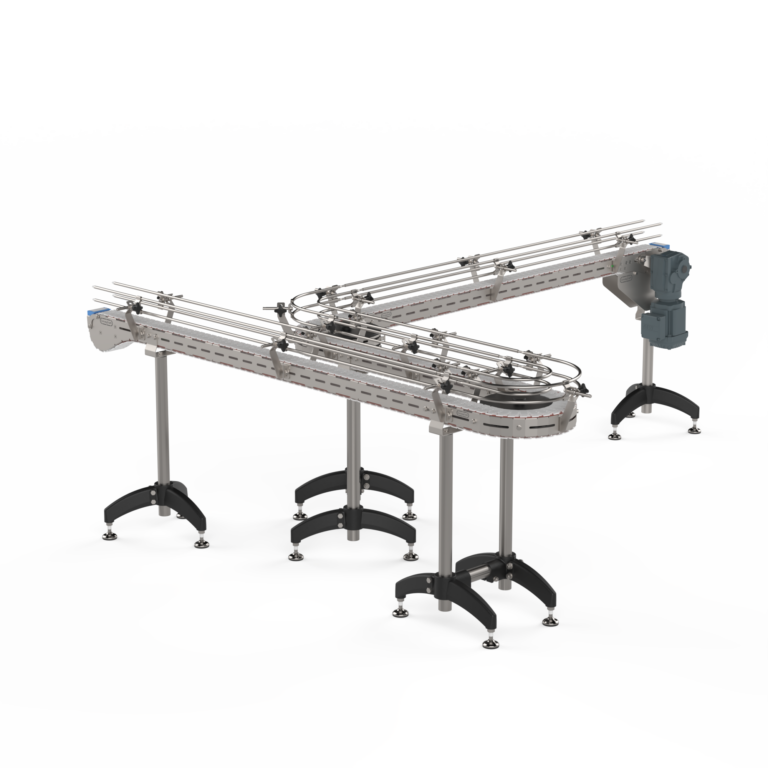

85mm conveyor system
Stainless steel modular chain conveyor with an 85mm frame and 83mm flat-top plastic chain. Build the layout from…
Open configurator

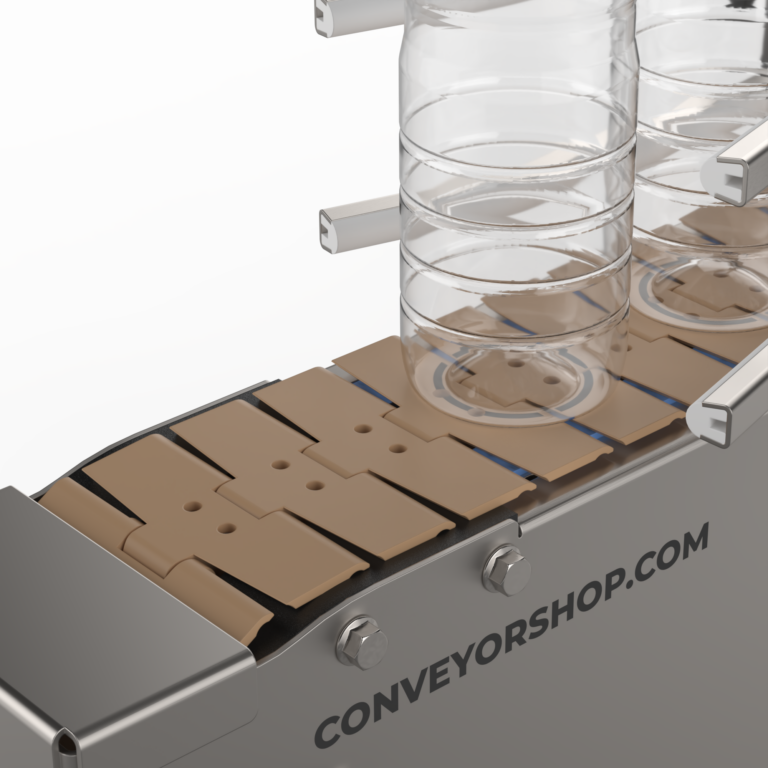

Plastic Chain Vacuum Conveyor
Plastic chain conveyor with vacuum hold down for stable transport of empty, unstable, light containers such as PET…
Open configuratorNot listed here?
Not all conveyor types are shown. We design and build custom solutions for any requirement.
Contact usWhat is a modular plastic chain conveyor?
A modular plastic chain conveyor is used when products need stable, guided transport through a production line. It is commonly selected for bottles, cans, jars, trays, cartons and packaged goods where the conveyor must include curves, side guides, accumulation areas or machine-to-machine transfers.
Compared with a simple belt conveyor, a plastic chain conveyor gives better lateral stability, easier integration of curves and more predictable product handling in automated filling, labelling, packing and palletising lines.
A plastic chain conveyor system can be built as a straight conveyor, 90° curve, 180° curve, incline, decline, accumulation conveyor or complete multi-section line with online price configuration. This makes it useful when products need to be transported around filling machines, labellers, sealers, checkweighers, packing machines or palletising equipment.
For production environments where cleaning and reliability matter, modular plastic chain conveyors are often built with stainless steel frames, food-grade components and easily replaceable wear parts. They are a practical choice when the conveyor must be configurable, washable and suitable for continuous industrial use.
Custom solutions for chain conveyors
Building conveyors with chains gives a wide range of options. These are some of the most common choices when selecting the right type for your industry needs.
Steel chains
Stainless steel chain for very demanding environments. Straight or curved configurations, also available with rubber inserts.

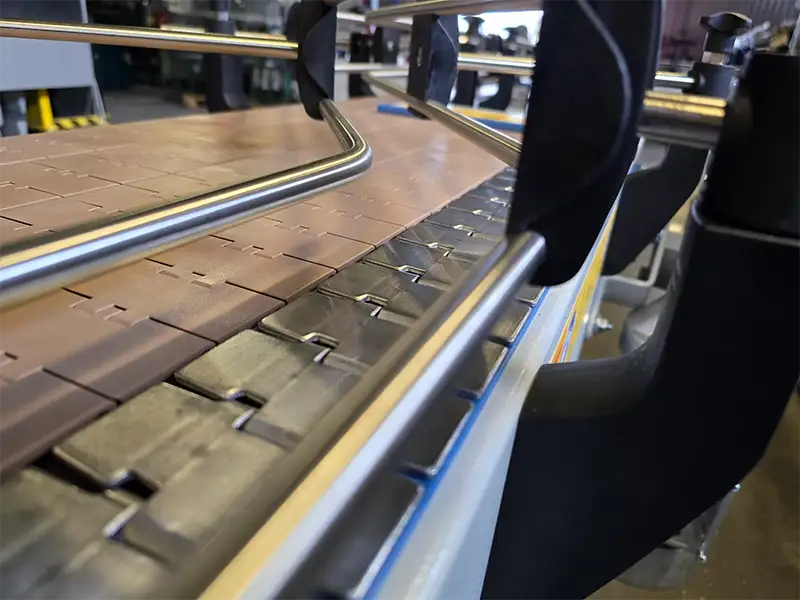

FlatTop chains
Most widely used chain type. Available in different materials and widths for straight and curved sections.
Low back pressure chains
Chain with built-in rollers that reduce back pressure when products accumulate.
Vacuum chains
For lightweight and unstable containers. Vacuum through slotted chain holds empty bottles and cans securely at line speed.
Frame & material options
Painted
Conveyor built with painted carbon steel or galvanized steel. Most economical solution for secondary packaging or production environments where stainless steel is not necessary.
Stainless steel
Built with stainless steel parts (eg. AISI304). Middle ground for cleanability and price. Can be washed down, but not all corners are easily reachable and may require some disassembly and more time for adequate cleaning. Suitable for areas that don't have direct product contamination but still need cleaning, or where the environment is too aggressive for non-stainless materials.
Washdown
For high-care applications, the conveyor can be designed with reduced contact points, open access for cleaning, hygienic fasteners, washable bearings and AISI 304 or AISI 316 stainless steel parts. Final design depends on product, cleaning method and hygiene zone.
Typical configuration options
| Parameter | Typical options |
|---|---|
| Conveyor type | Straight conveyor, 90° curve, 180° curve, incline, decline, accumulation conveyor |
| Product types | Bottles, cans, jars, trays, cartons, packaged goods |
| Frame material | AISI 304 stainless steel, painted steel or galvanized steel depending on environment |
| Chain type | Plastic slat chain, tabletop chain or modular plastic chain depending on product and layout |
| Conveyor width | Narrow chain systems and wider modular chain options depending on product size |
| Conveyor length | Built to project requirements |
| Speed | Fixed speed or variable speed with frequency inverter |
| Guides | Adjustable side guides, product-specific guide rails and transfer sections |
| Environment | Dry, washdown or food-grade production areas |
Industries & applications
Modular plastic chain conveyors are the standard solution wherever products move hygienically at moderate to high speed.
Bottling lines (PET, glass, aluminium)
Transport of filled, capped bottles between filler, capper, labeller, packer and palletiser. Water, soft drinks, beer, juice and spirits.
Can filling lines
Aluminium can lines between depalletiser, filler, seamer, pasteuriser and packer. Vacuum variant for empty can transport.
Dairy production
Cups, cartons, pouches and bottles on dairy lines. White chain for hygienic areas, no hollow sections where liquid collects.
Food packaging
Trays, boxes, pouches and vacuum packs connecting forming, filling, sealing, checkweigher and case packing.
Personal care & household
Bottles, tubes and aerosols on cosmetics lines. Handles varied container shapes reliably without scratching.
Pharmaceutical manufacturing
Vials, bottles and blister packs. White chain, smooth surfaces and full documentation. Cleanroom-compatible variants on request.
Recent projects

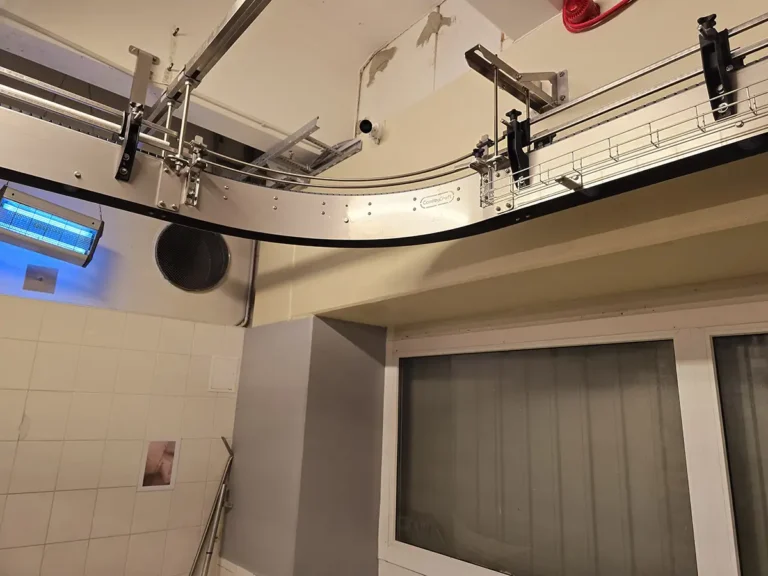

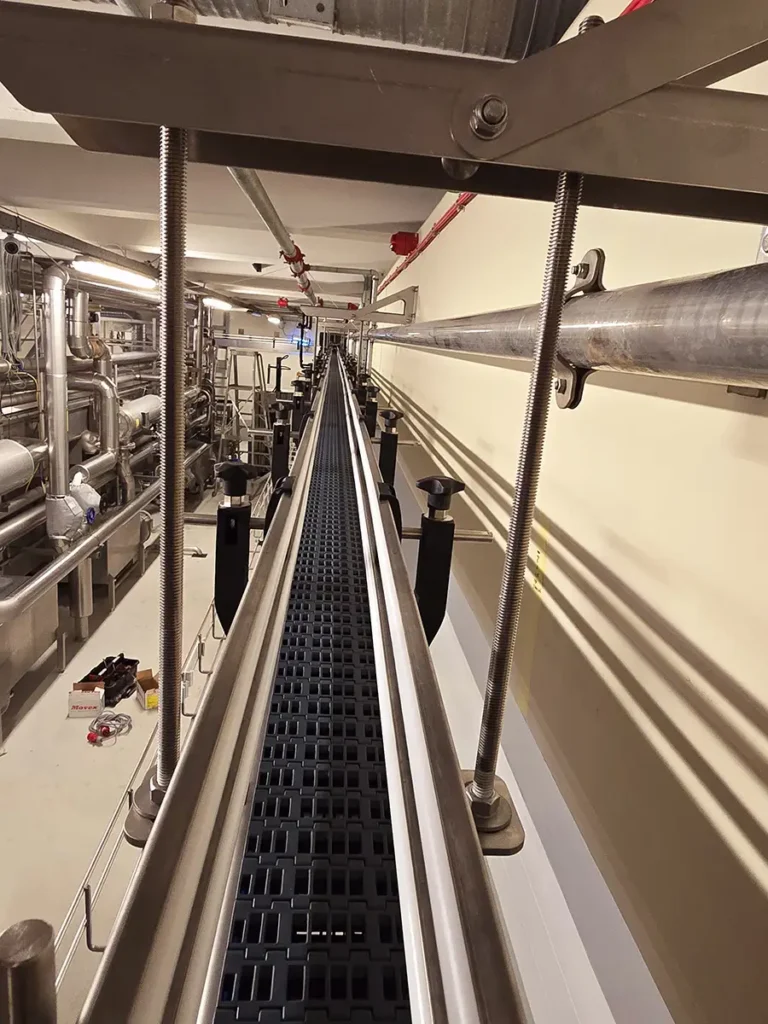

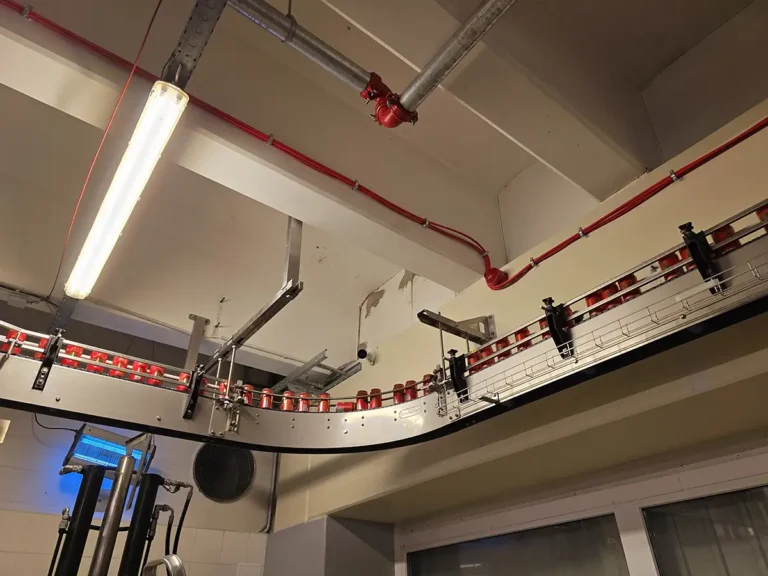

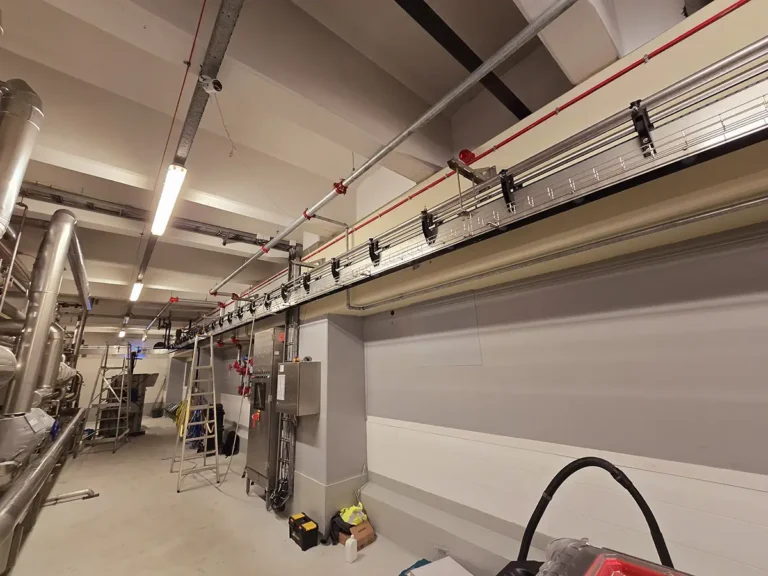

Modular plastic chain aluminium can conveyor
Multi-section conveyor system for aluminium can transport with curves and straight sections.
Why get chain conveyors from us
Modular conveyors
We have modular solutions to cover basic conveying needs. Price your layout online.
Custom solutions
Not every layout fits a standard module. We design custom conveyor sections and accessories.
Pre-assembled & tested
Every conveyor is assembled and test-run at our facility before shipping.
Standard components
We design around widely available standard components so you're never locked into proprietary parts.
Common questions
A plastic chain has a single hinge in the center and is typically up to 305 mm wide. A modular plastic belt has a full-width hinge and can be assembled to almost any width. For narrow conveyors up to 305 mm, chain is usually the more economical choice. On wider conveyors, modular plastic belt is generally cheaper.
Products without a flat, stable base are difficult to transport on a plastic chain. Very light or unstable containers, such as tall empty PET bottles, may tip over at speed — these need guide rails, a vacuum chain or a different conveyor type. Very hot products, sharp-edged metal parts and bulk materials are also not suitable for standard plastic chain.
Standard lead time is usually around 6–10 weeks from order confirmation, covering engineering, manufacturing, pre-assembly and functional testing. Conveyors are delivered pre-assembled where transport dimensions allow. We deliver across Europe with CE documentation and commissioning coordination. Read more on How to order.
For chains, sprockets and wear parts we use all major suppliers, for example Movex, Rexnord and Uni-chains. For gearmotors we use Nord Drivesystems and SEW Eurodrive. If you have a preferred supplier, we can build your conveyor with their components.
Yes. Where reasonable, we build conveyors with your preferred parts so you can keep a smaller spare parts stock in your warehouse. For example, if all your existing sprockets are Z25 with a 40 mm shaft, we can use the same parts in the new conveyor.
