Description

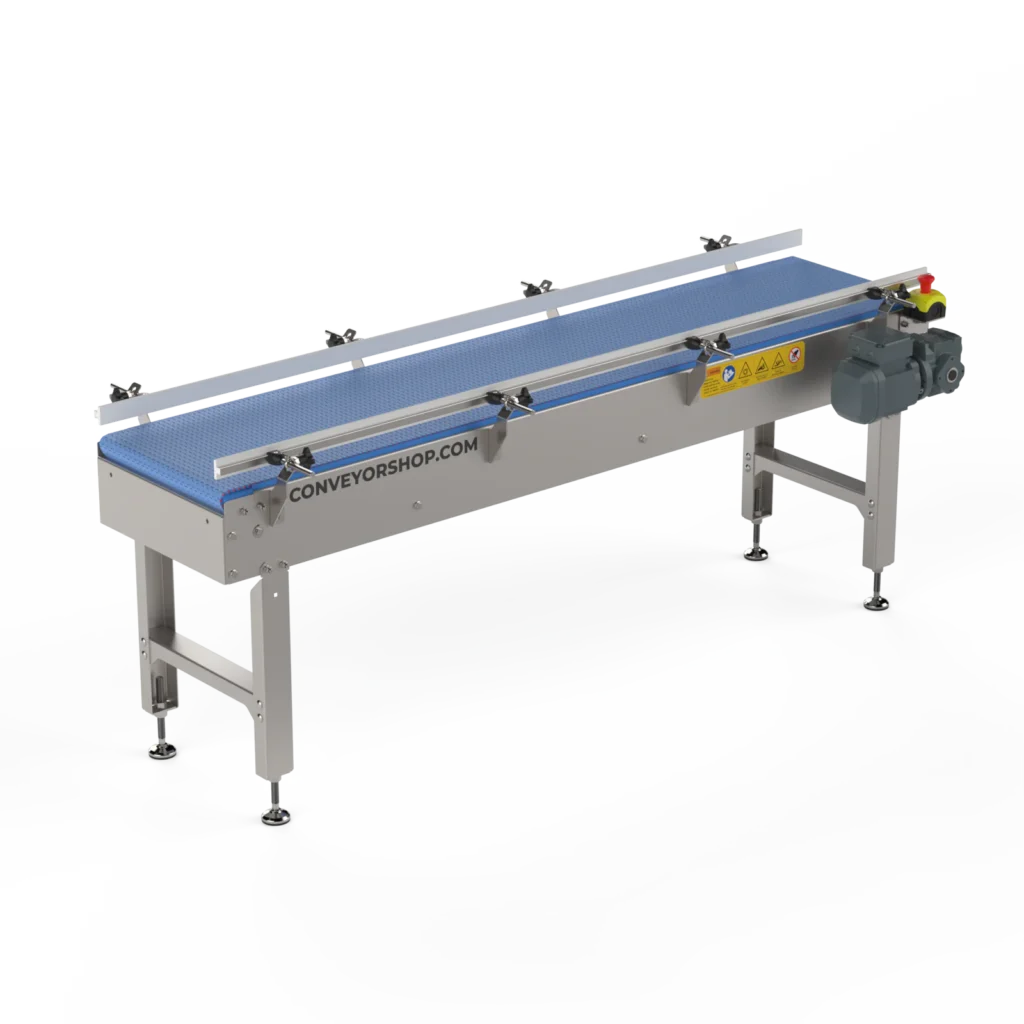

The FlatTop conveyor (article 3042) is a hygienic flat-top plastic chain conveyor built on a stainless steel frame with a nosebar transfer edge. Choose required conveyor length, chain width and extras and the price is computed instantly from our production cost table.
Other dimensions are quoted on request. We can offer up to 1530mm wide and possible length depends on conveyor load.
Configurator price includes:
-> Nosebar on both ends
-> Stainless steel AISI304 construction
-> Closed design bearing blocks made of reinforced polyamide
-> FlatTop chain LF (FDA approved material)
-> Side guides if selected
-> Suitable gearmotor included (standard option is Nord Drivesystems. SEW Eurodrive is quoted separately)
-> Washdown-grade paint and H1-certified gearbox oil for direct food-contact environments if selected
Different chain options available:
-> FlatTop (standard option)
-> GripTop – rubber overlay on chain
-> Low Back Pressure accumulation chains
-> Open surface chains
Typical applications
- Infeed / outfeed between fillers, labellers, cappers and case packers – secondary packaging
- Short transfer sections with a nosebar edge for handing over to the next belt
- Hygienic food & beverage lines requiring stainless steel washdown construction
Build options
| Frame material options | Standard execution AISI 304. Other options like painted steel or AISI316 on request |
|---|---|
| Chain material | Standard execution LF (FDA registered) |
| Gearmotors | Standard option is Nord Drivesystems. SEW Eurodrive is quoted separately |
| Transfer edge | Nosebar both sides |
| Food-grade option | Price configurator is for regular build gearmotors. On request: gearmotors with NSF H1 certified oil & surface protection for washdown environments |
| Width options | 85mm to 1530mm in 85mm increments. |
| Length options | Standard option for price configurator 1.0 – 6.0 m. Can be easily longer if allowable chain pull is not exceeded. |
Characteristics
Strengths
- Nosebar transfer on both ends allows smooth transfer of small products between conveyors
- Compared to a regular belt conveyor needs very little attention. No tracking issues and modular chain lasts longer than a belt
- Chain is easily removable for maintenance or cleaning etc.
Limitations
- Modular chain is more expensive than regular belt
- Makes more noise than standard belt conveyor
- Not for bulk materials and abrasive materials (anything that can jam chain hinges)
