This is a base design. Every conveyor is quoted separately, because curve angle, inner radius, width and options change with each project.

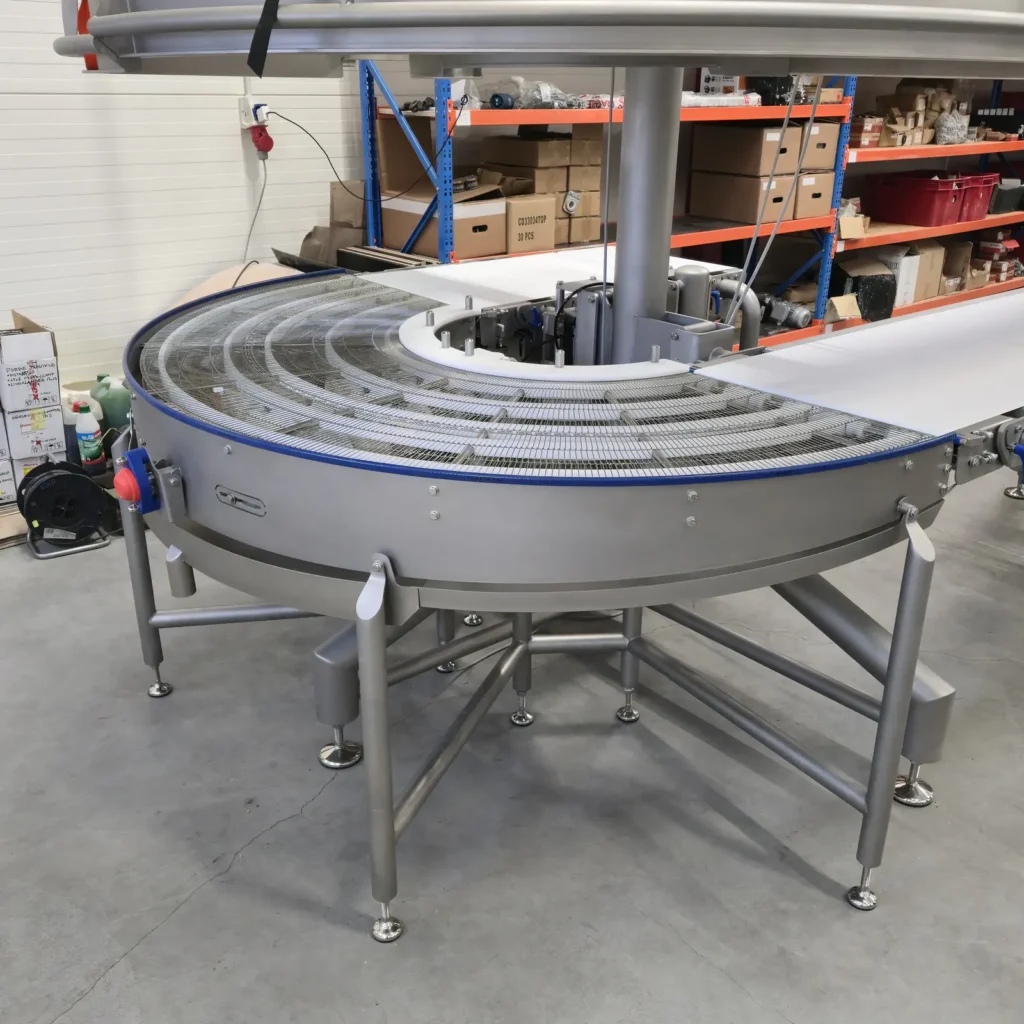

The tapered-pitch belt carries products through a 45° to 180° turn while maintaining product orientation and spacing.
Typical applications
-> Lines where good airflow is requiered – cooling, drying, heating.
-> Move product between process machines in a washdown area.
Frame options
-> Drip trays
-> Frame AISI 304 as standard, AISI 316 on request.
-> Fully welded tubular frame. Open design sheet metal frame is also possible.
-> Height-adjustable feet with are standard ±50mm. Lockable swivel castors are available
-> Standard finish bead blasted
Information required for quotation
Due to wide selection of size options and extras, every conveyor will be quoted separately
Please provide the following data:
-> Product dimensions, weight and contact surface
-> Required capacity or belt speed
-> Turn angle and direction
-> Belt width and infeed height
-> Available inside radius and surrounding layout
-> Product and ambient temperatures
-> Required side guides, supports and controls
-> Infeed and outfeed conveyor details
Build options
| Wire mesh belt sizes | Belt widths from 254 to 1270 mm, depending on radius and turn angle |
|---|---|
| Belt support | PE or stainless steel. |
| Transfer ends | Small rollers, minimum radius depends on application. |
| Drive | Painted steel gearmotor or fully stainless build where required. NSF H1 registered oil as standard. |
| Bearings | Technopolymer housing or fully stainless steel bearings. All bearings are with NSF H1 certified grease. |
