Description

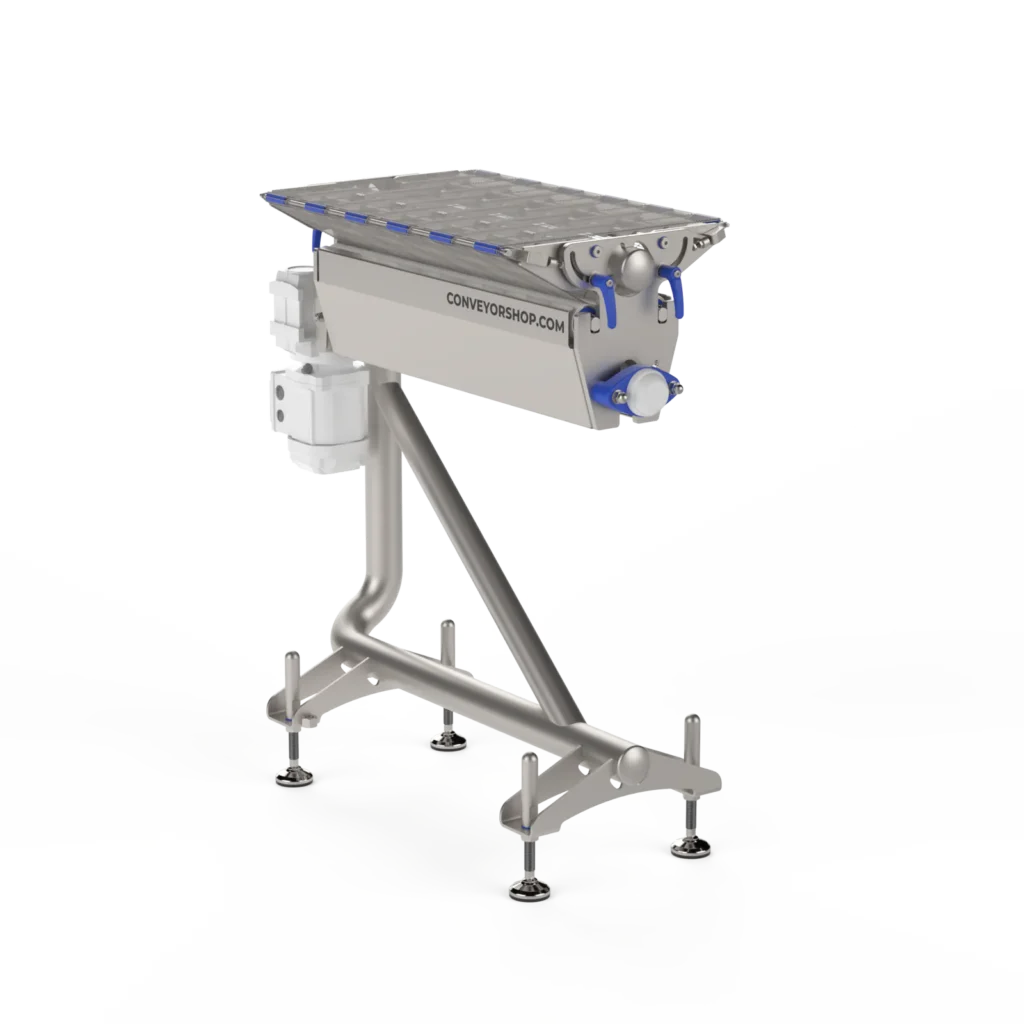

Wire mesh transfer conveyor is designed to bridge the gap between different types of adjacent conveyors with larger diameter drive/return pulleys. It has open metal wire mesh belt and transfers with small diameter nose roller.
Typical applications
-> Transfer small items off a large diameter sprocket or drum.
-> Bridge two machines in a cooling, coating or washing line.
Cleaning
-> Open mesh belt for full washdown
-> Removable side covers.
-> Chain comes off without tools. Not possible on very short lengths.
Not included
-> Motor wiring and control systems. We can add a control panel to your order on request.
Information required for quotation
Due to wide selection of size options and extras, every conveyor will be quoted separately.
Please provide the following data:
-> Product dimensions, weight and contact surface
-> Required capacity or belt speed
-> Belt width and infeed height
-> Product and ambient temperatures
-> Required side guides, supports and controls
-> Infeed and outfeed conveyor details
Build options
| Size | Wire mesh chain width and length to suit the line. Minimum length between nose rollers is about 200 mm. |
|---|---|
| Support frame | Height-adjustable feet, ±50 mm as standard.. Lockable swivel castors are available. |
| Material options | Frame AISI 304 as standard, AISI 316 on request. Standard finish is bead blasted |
| Wire mesh belt support | PE or stainless steel. |
| Gear motor options | Painted SEW-Eurodrive OS3 as standard, stainless steel on request. |
| Bearing selection | Technopolymer housings with NSF H1 registered grease as standard, full stainless on request. |
| Operating parts | Technopolymer approved for food production areas, full stainless on request. |
| Extras | Integrated CIP nozzles |
Characteristics
Strengths
- Small nose rollers at both ends
- Good cleanability
- Chain comes off without tools
Limitations
- Wire mesh chain is fragile. Collision with adjacent belts or chains must be avoided.
- Small products can fall through the mesh. Check the product against the mesh pitch.
- Light to medium duty. Not for heavy loads.
- Chain removal without tools is not possible on very short lengths.
